Simplecom EC318v2 PCI-e x4 to USB 3.2 Gen2x2 20Gbps USB-C Expansion Card

Write a review

Simplecom EC318v2 PCI-e x4 to USB 3.2 Gen2x2 20Gbps USB-C Expansion Card

Write a review
Product Id: 761718
You save: $31.08 (34%)
$59.58 List price: $90.66
Martmox
10 days
V28-SIMEC318V2
10 item(s)
+

Estimated shipping time: 4-6 days

PayPal
4 payments
of A $14.89
Afterpay
4 payments
of A $14.89
Zip
Secure Payment
Secure Payment methods: Pay securely with PayPal or Stripe — Industry-leading encrypted payment systems.
Best Price
Best Price Guarantee - We offer best price guarantee
Customer Support
Exceptional customer support that prioritses your satisfaction.

Our Bundle Offer

Simplecom EC318v2 PCI-e x4 to USB 3.2 Gen2x2 20Gbps USB-C Expansion Card

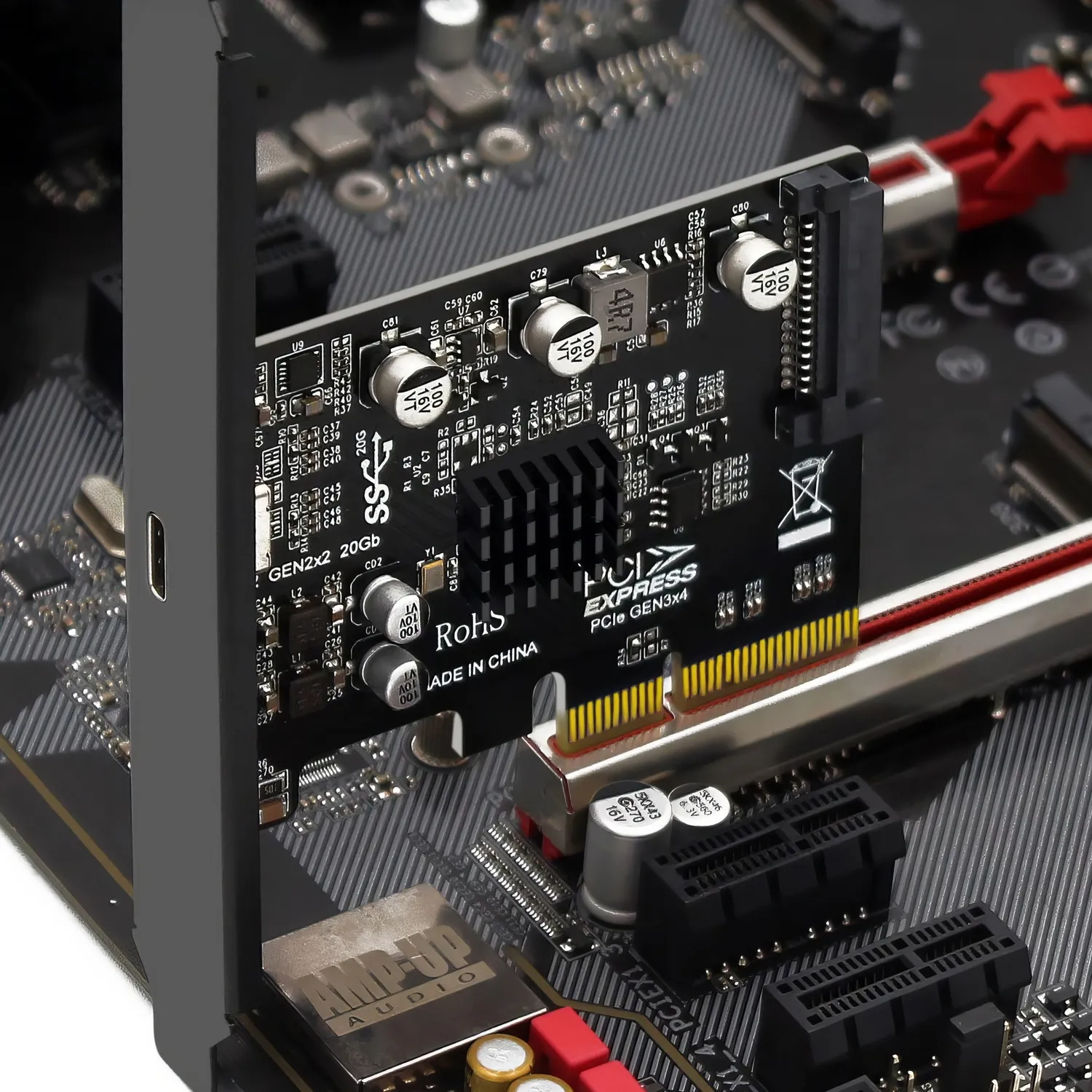

This PCIe x4 expansion card is an ideal solution for upgrading your desktop PC with high-speed USB connectivity. Featuring a USB 3.2 Gen 2x2 interface, this card delivers lightning-fast data transfer speeds of up to 20Gbps through a single USB-C port, ideal for modern devices requiring maximum performance.

This PCIe expansion card is compatible with PCIe x4, x8, and x16 slots, making it easy to integrate into various system configurations. Powered directly by the PCIe slot, it requires no external power supply, making installation simple and hassle-free. An integrated PCIe 12V to 5V module provides stable power to the USB ports for reliable performance.

This card is plug-and-play, with automatic installation on Windows operating systems for a hassle-free setup. Whether you are upgrading your desktop PC or building a new system, this expansion card is a reliable and high-performance addition to your PC.

Features

  • PCIe x4 expansion card, also compatible with PCIe x8 or x16 slots
  • USB 3.2 Gen 2x2 interface supports data transfer rates of up to 20Gbps
  • Adds 1x USB-C 20Gbps port to your desktop PC
  • Backward compatible with USB 3.2 Gen 1, Gen 2, and earlier devices
  • Built-in overcurrent protection
  • Powered by PCIe, no external power required
  • Integrated PCIe 12V to 5V module provides power to USB ports
  • Plug and play, automatic installation on Windows

Specifications

  • PCIe Interface: PCIe 3.0 x4 (compatible with PCIe x8 or x16 slot)
  • USB Standard: USB 3.2 Gen 2x2 20Gbps
  • Connectors: 1x USB-C
  • USB Speed Support: 20Gbps, 10Gbps, 5Gbps, 480Mbps
  • USB Power Source: Integrated PCIe 12V to 5V module, SATA 15Pin (backup power only)
  • Operating System Support: Windows 8 and above

Package Contents

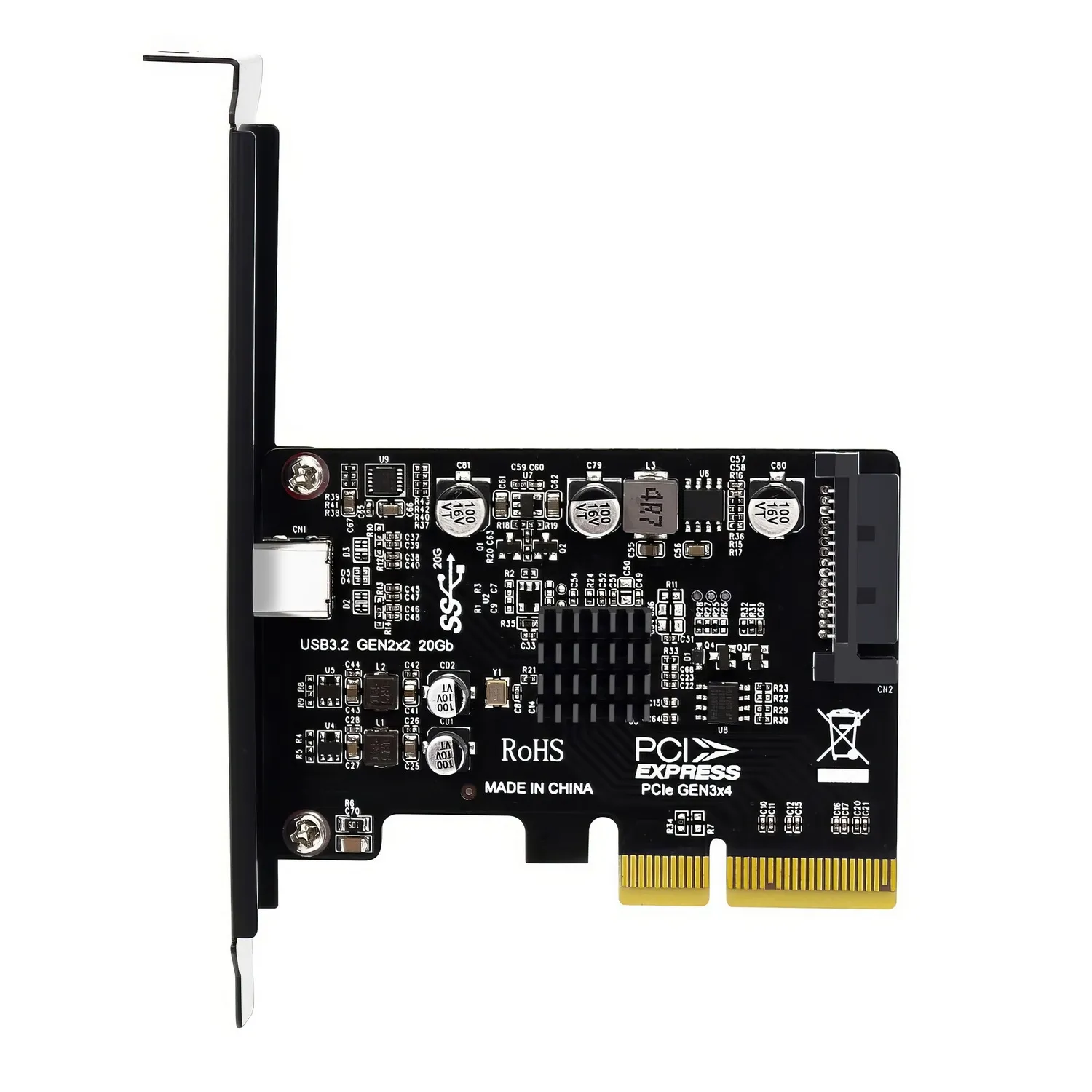

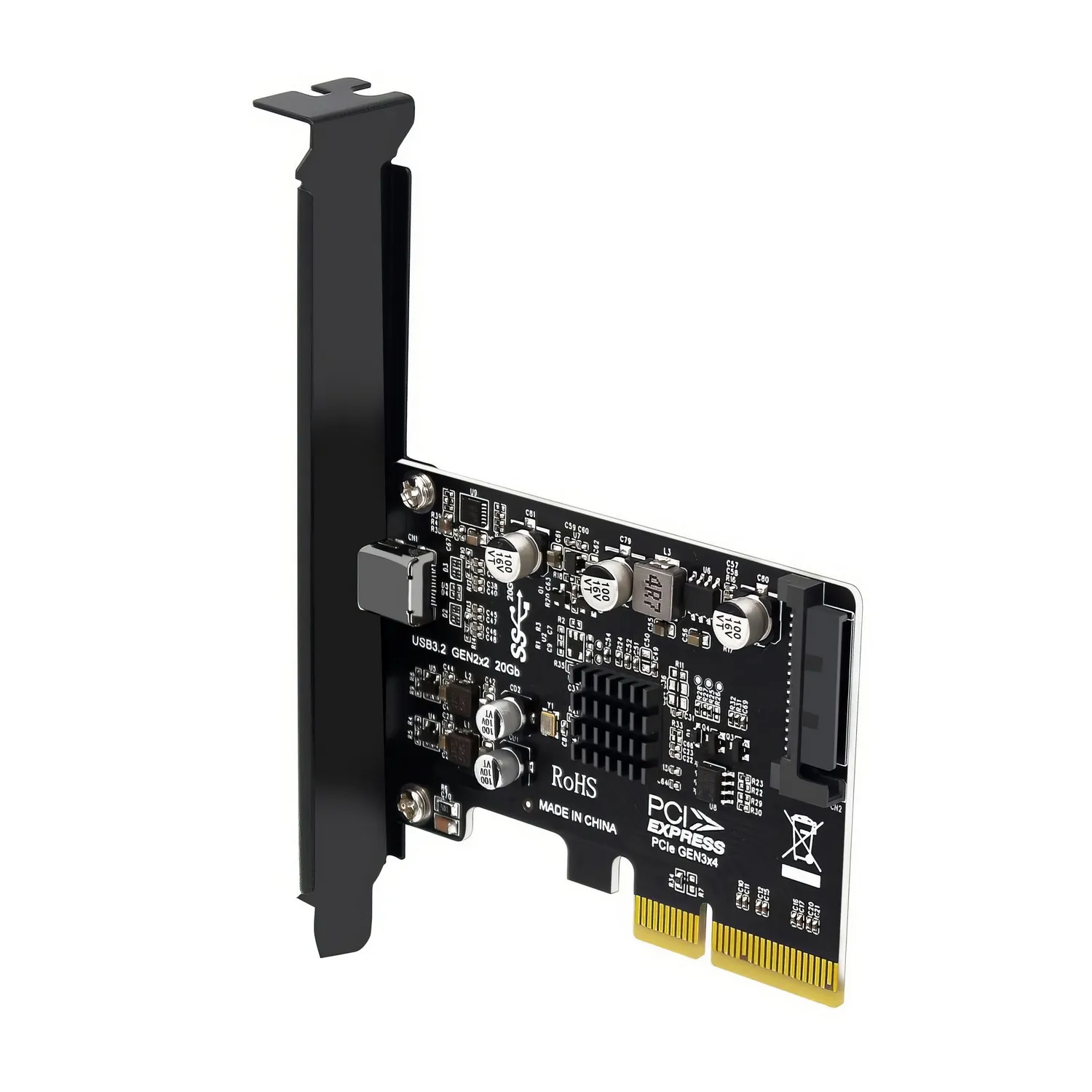

  • 1x USB 3.2 Gen 2x2 1-Port PCIe x4 Card

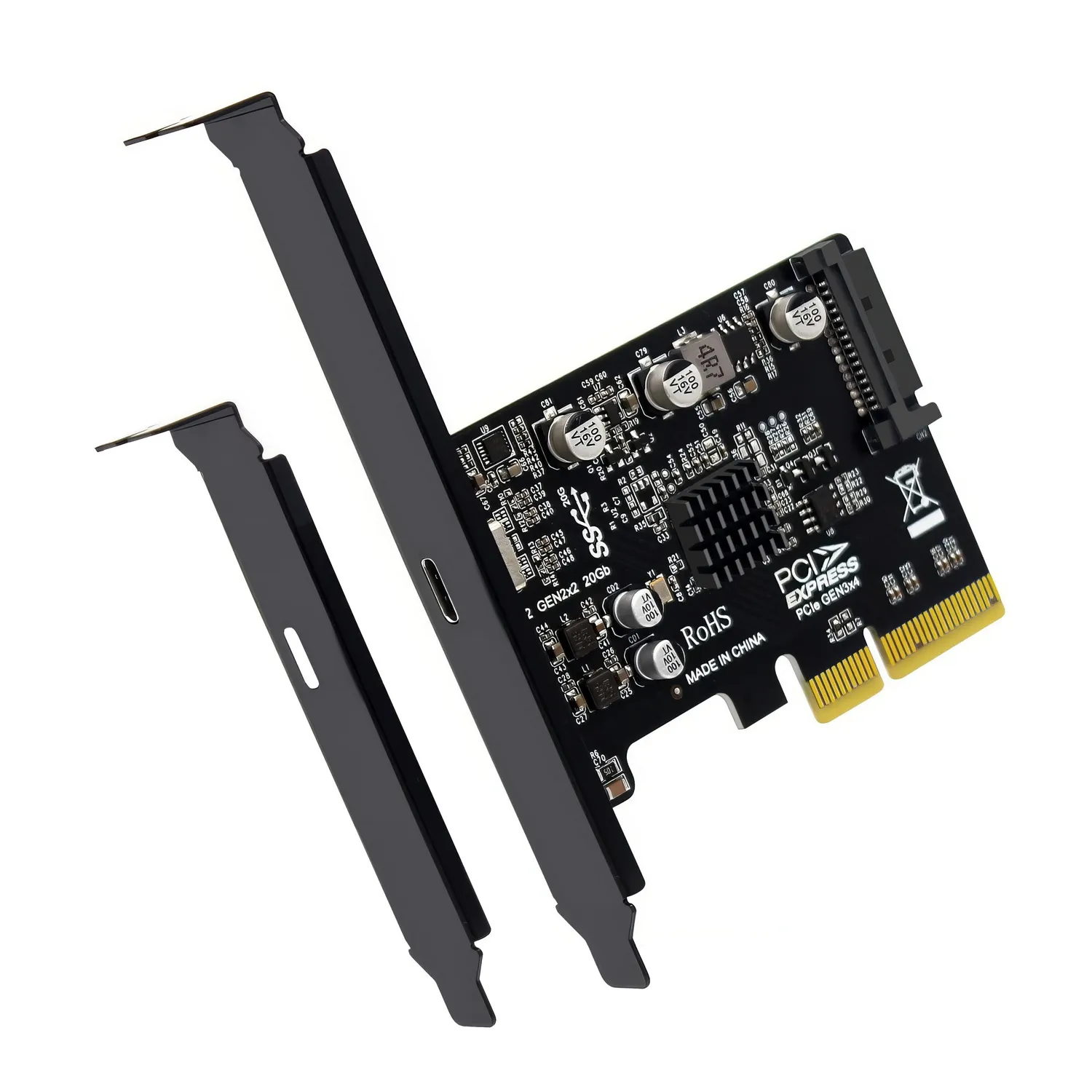

  • 1x low profile bracket

Important Note

  • The EC318v2 does not support DP Alt Mode or USB-C Power Delivery.
  • The EC318v2 is designed for PCIe 3.0 interfaces. To achieve the full speed of USB 3.2 Gen 2x2, use a PCIe slot based on PCI Express 3.0 or a newer version on your motherboard.
  • Actual data transfer speeds may be limited by the connected USB device. Please check your USB device's maximum supported speed.
  • Thunderbolt 3 devices are supported but are only compatible with a 10 Gbps data transfer rate.
  • Windows 7 is not supported.
Carton Height:
7
Carton Length:
21
CBM:
0.002
Brand Name:
SIMPLECOM
