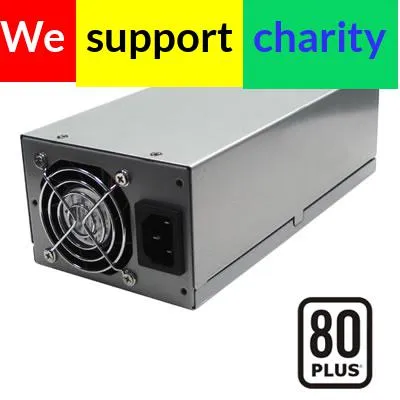

SeaSonic 600W Active PFC F0 2U PSU (SS-600H2U)
Martmox6
We Donate 2% of Product
Price to Children's Hospital
SeaSonic 600W Active PFC F0 2U PSU (SS-600H2U)
Product Id: 426876Our Bundle Offer
Features:- Specification compliance: Intel EPS12V- Forward converter circuit- High efficiency and reliability for industrial level- Easy swap connector design- High reliability ball bearing fan- Low ripple noise- Smart Silent Fan Control (S2FC)- Short circuit protection on all outputs- Over voltage protection- Over power protection- 100% hi-pot test- 100% burn in, high temperature cycled on/off- PFC harmonics compliance: IEC1000-3-2 /EN61000-3-2 standardsDimension: L270 x W100 x H70mm (10.6 x 3.9 x 2.7)Fan type: 60 x 60mmConnectors:Customized modular cablesElectrical Specifications:- Input frequency: 50 / 60 Hz- Inrush current, cold start: 100A max.- Hold up time, full load: 16ms. typical- Efficiency, 220-240VAC, full load: 83% typical- Efficiency, 100-120VAC, full load: 80% typical- Dielectric withstand, input to frame/ ground: 1800VAC, 1sec.- Dielectric withstand, input to output: 1800VAC, 1sec.- Line regulation: +/-1% typical- Load regulation: +/-5% typical- Cross regulation: +/-5% typical- Ripple / noise: 1%- MTBF, full load: >100K hours (Excluding the DC fan)- Power Factor Correction: Active PFC 99% typicalSafety: CUL, TUV, CB, CCCEMC: CE, FCCPackage contents:1x SeaSonic 600W Active PFC F0 2U PSU (SS-600H2U)
Carton Height:
0
Carton Length:
0
Brand Name:
Does not apply
