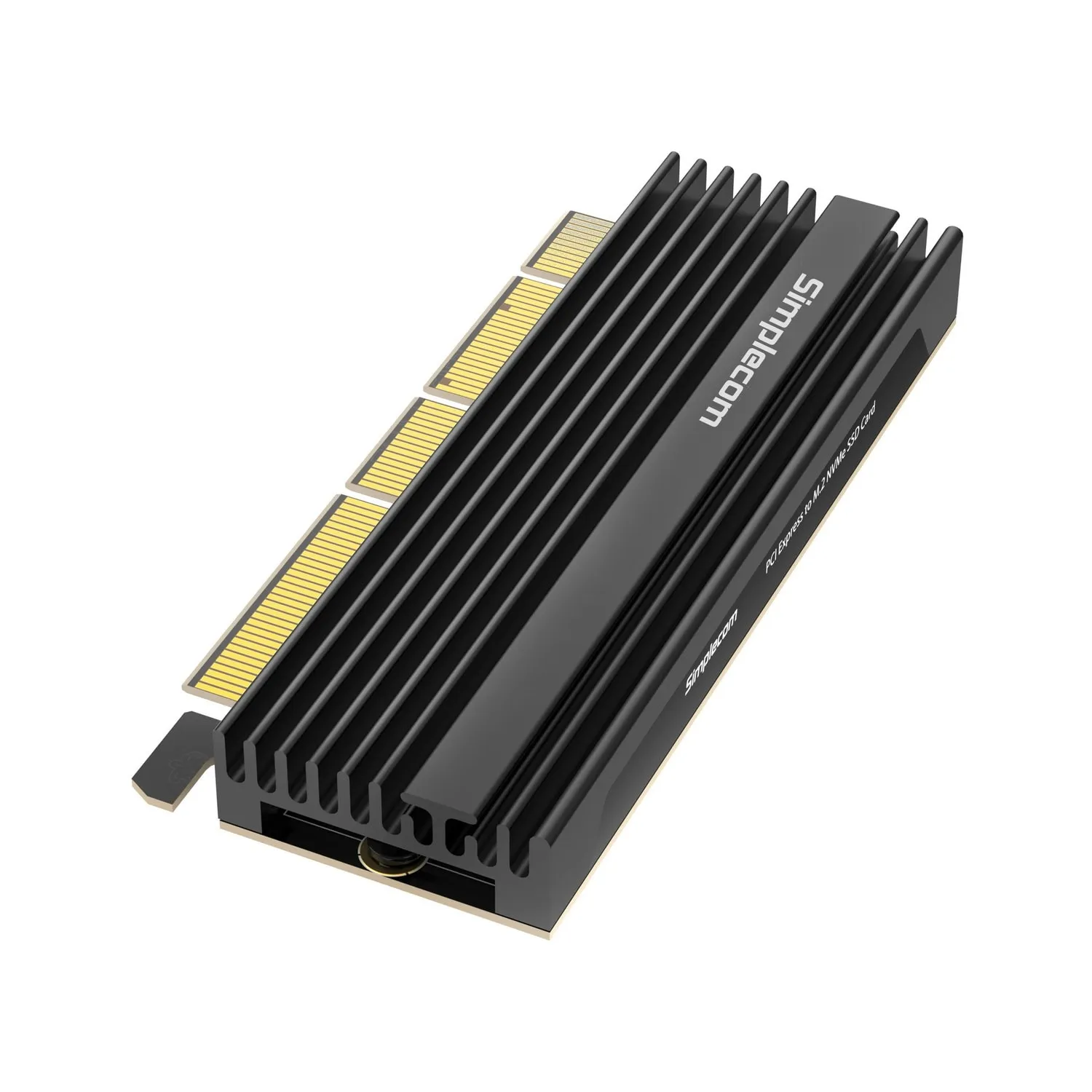

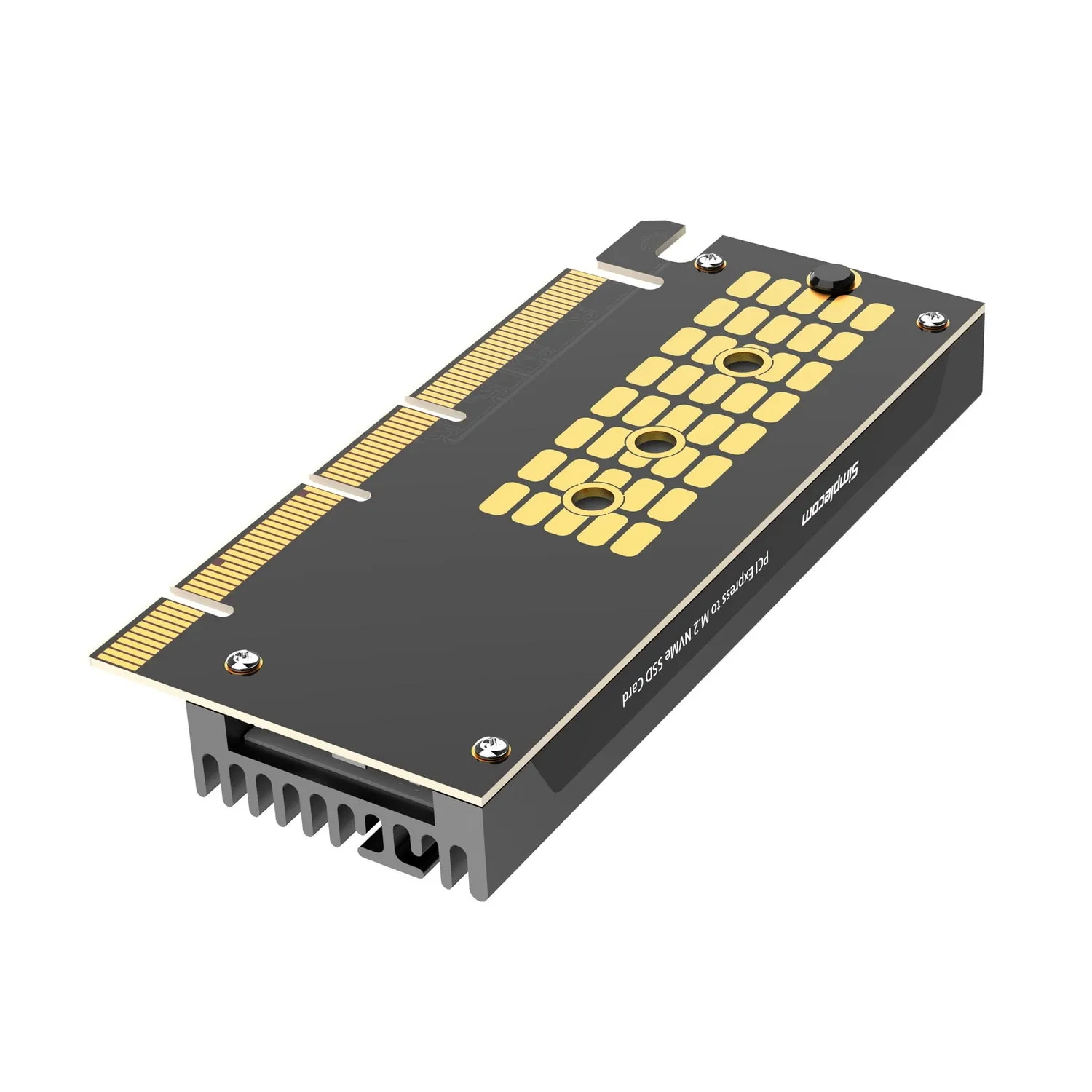

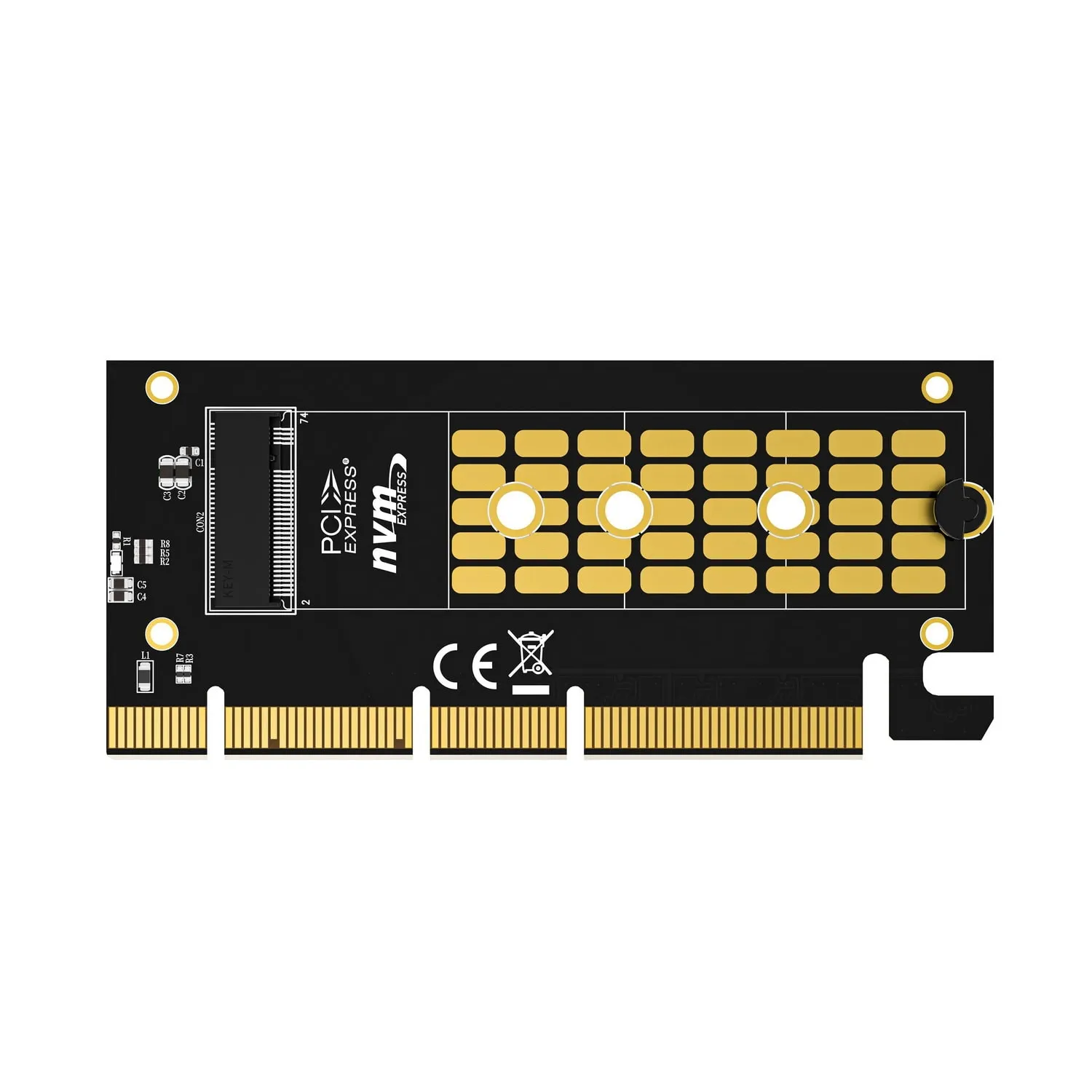

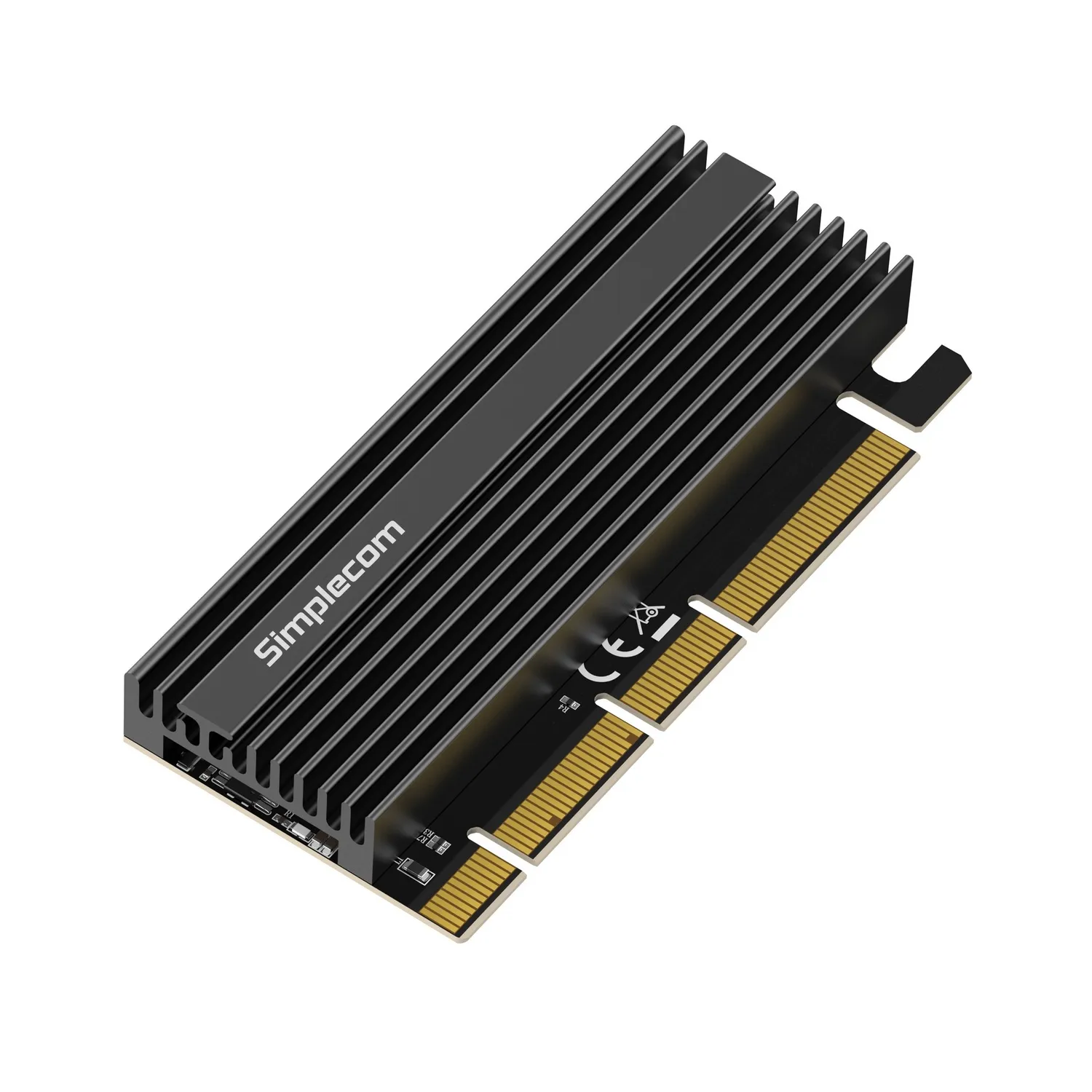

Simplecom EC415B NVMe M.2 SSD to PCIe x4 x8 x16 Expansion Card with Aluminium Heat Sink Black
Martmox6
We Donate 2% of Product
Price to Children's Hospital
Simplecom EC415B NVMe M.2 SSD to PCIe x4 x8 x16 Expansion Card with Aluminium Heat Sink Black
Product Id: 372750Our Bundle Offer

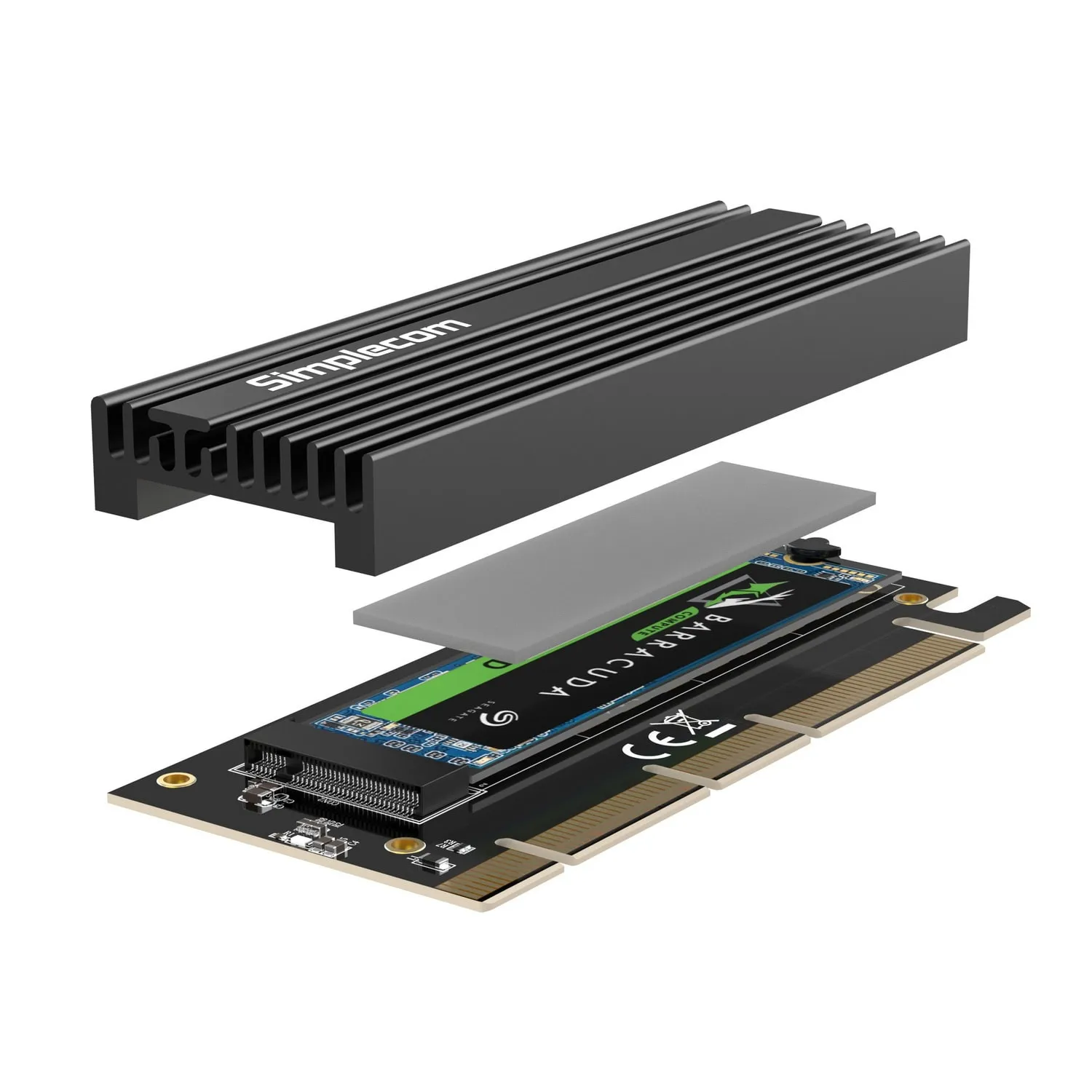

Simplecom EC415B NVMe M.2 SSD to PCIe x4 x8 x16 Expansion Card with Aluminium Heat Sink BlackEC415B is a PCI Express expansion card designed to add NVMe M.2 SSD onto existing PC motherboard. It comes with aluminium heatsink for effective heat dissipation and silicone thermal pad for improved thermal conductivity. Designed for NVMe M.2 SSD only, this expansion card can fully utilize the performance of the NVMe SSD.FeaturesAdd extra NVMe M.2 slot to your PCAluminium heat sink for effective heat dissipationSilicone thermal pad for improved thermal conductivitySupports physical PCIe x4 x8 x16 slotSupports logical/throughput interface up to PCIe x4Powered by PCIe slot, no additional power requiredCompatible with Windows 8 and aboveSpecificationsModel: EC415BColor: BlackPhysical Interface: PCI Express x4 / x8 / x16Logical Interface: PCI Express x4Bandwidth: up to 7.8 Gbps (PCIe x4 on PCIe4.0)Module Key: M key (for NVMe M.2 only)Number of Supported Drive: 1Supported Type M.2 SSD: 2230, 2242, 2260, 2280Dimension: 99 x 45 x 13mmPackage Contents1x NVMe M.2 to PCIe Expansion CardHeatsink with thermal padStandoff and screw setImportant NoteThis model is for use with NVMe SSD only, SATA M.2 SSD is Not supportedIt supports physical PCIe x4 x8 x16 slot only, PCIe x1 slot is Not supportedIt supports logical/throughput interface up to PCIe x4NVMe M.2 SSD requires the use of Intel 9 series (Z97 H97 Z170 X99) or higher version chipset based motherboard with Windows 8 or higher operating systemIf there is a yellow exclamation mark under the Device Manager after installation, you may need to check if additional driver required from SSD manufacturerLegacy motherboard without built-in NVMe M.2 slot can't support booting operating system from PCI Express
Carton Height:
1
Carton Length:
15
Brand Name:
SIMPLECOM
